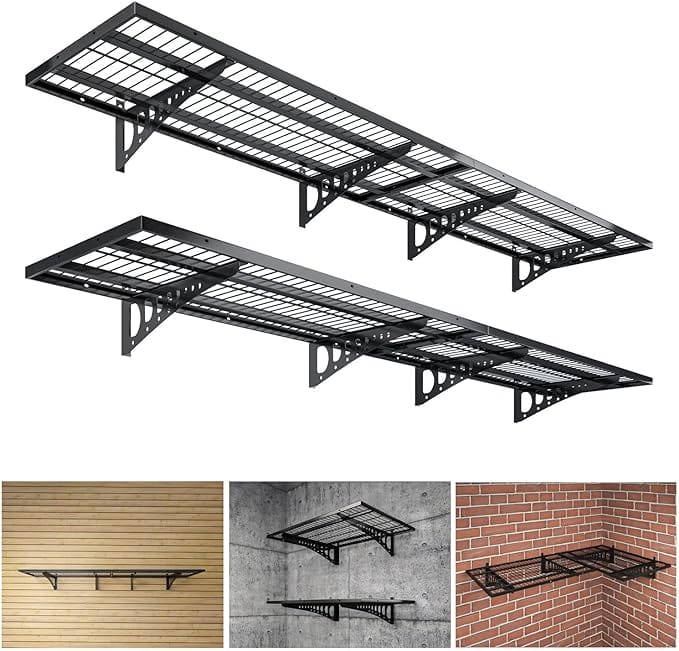

Say goodbye to cluttered floors and hello to organised efficiency with our Garage Wall Mounted Heavy Duty Shelf – 1800mm x 600mm. Designed specifically to reclaim valuable floor space, our shelves offer an unparalleled alternative to traditional floor-based units.

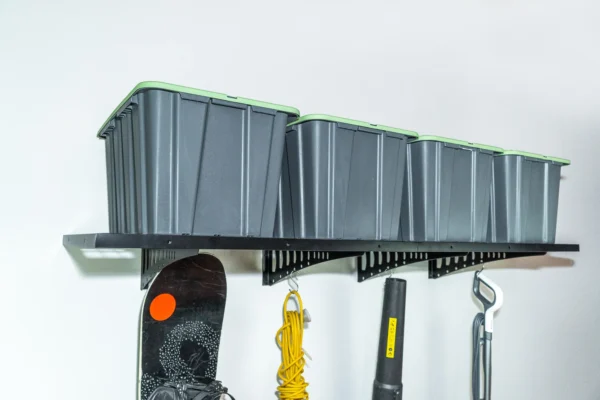

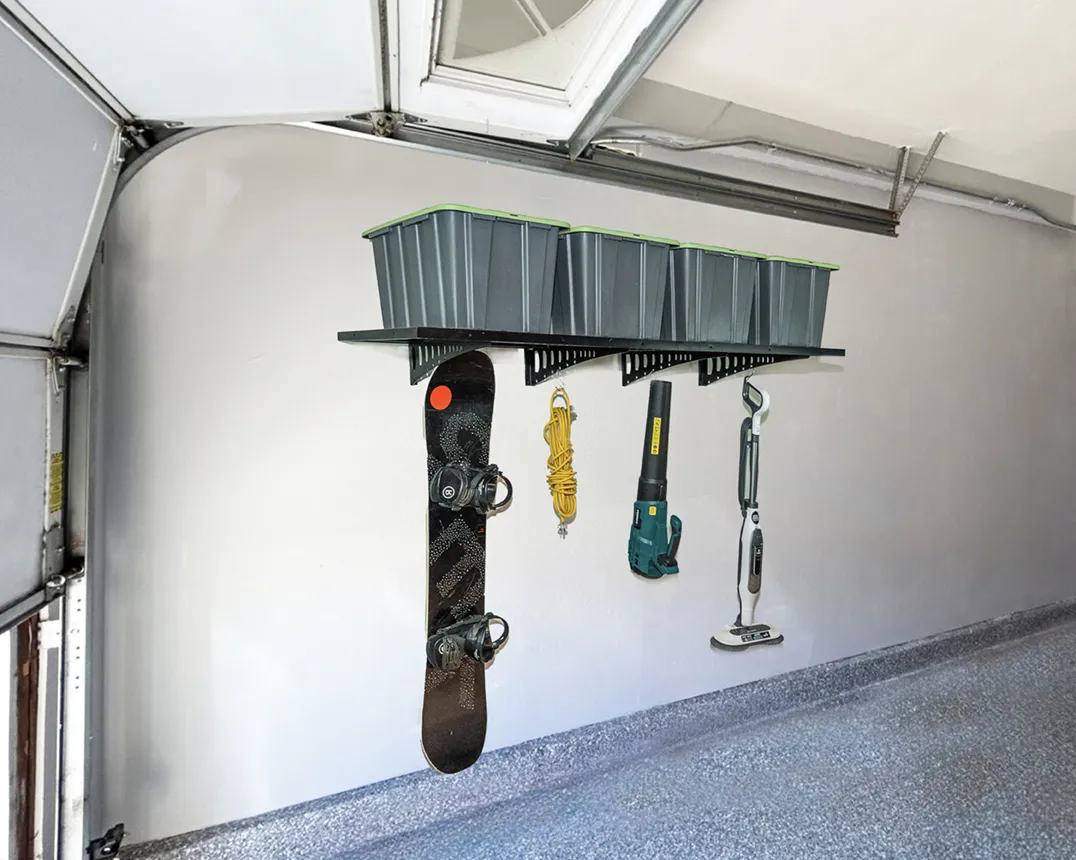

Why settle for cumbersome floor units when you can elevate your storage to new heights? Our wall shelves are meticulously crafted to provide optimal storage solutions without sacrificing accessibility. Positioned above vehicles or cabinets, they maximise every centimetre of your garage, making it easier than ever to keep your essentials within reach.

Unleash Your Creativity with Versatile Design!

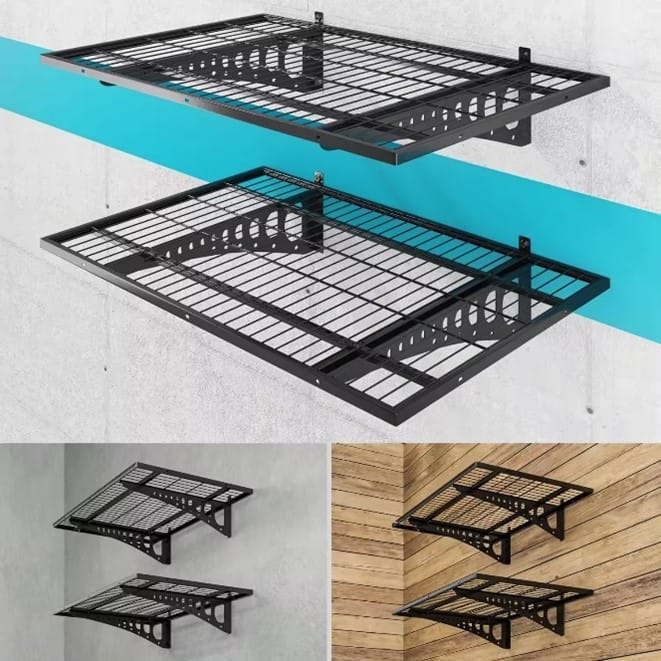

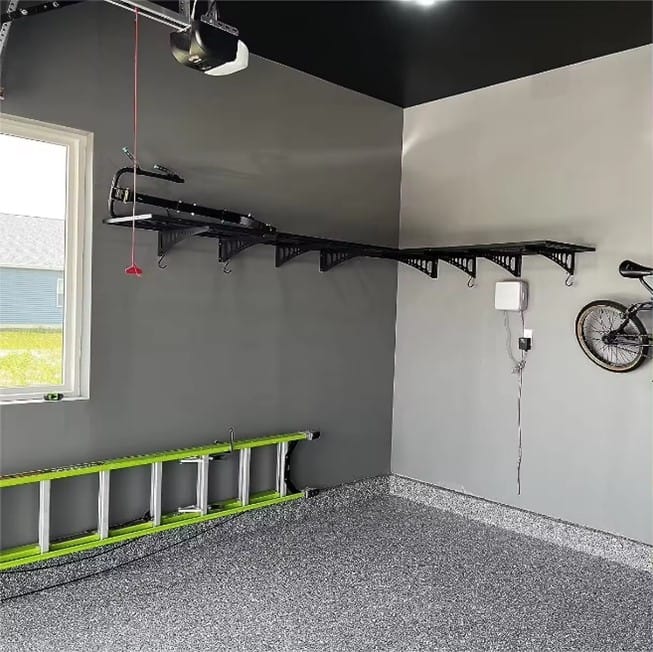

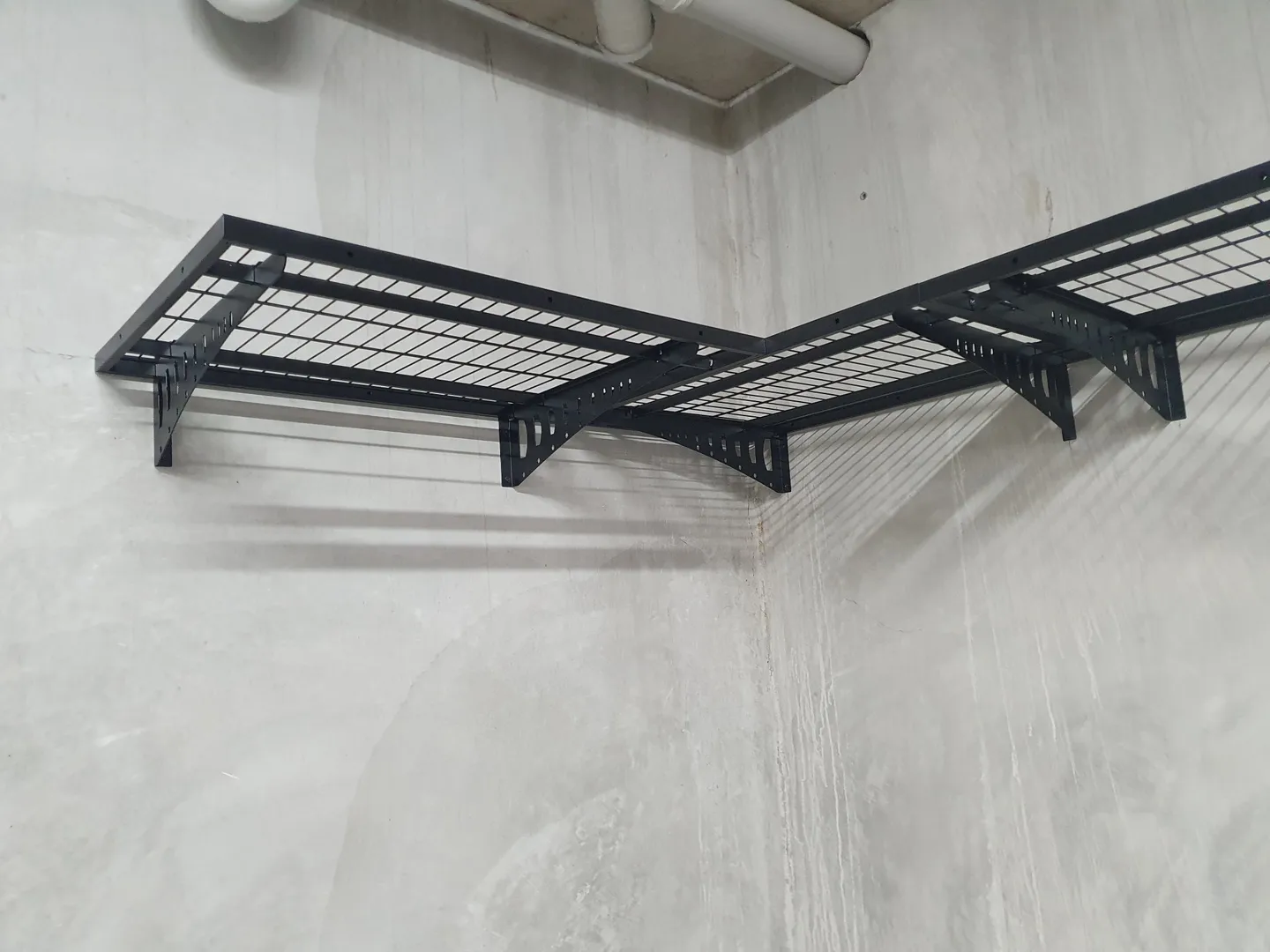

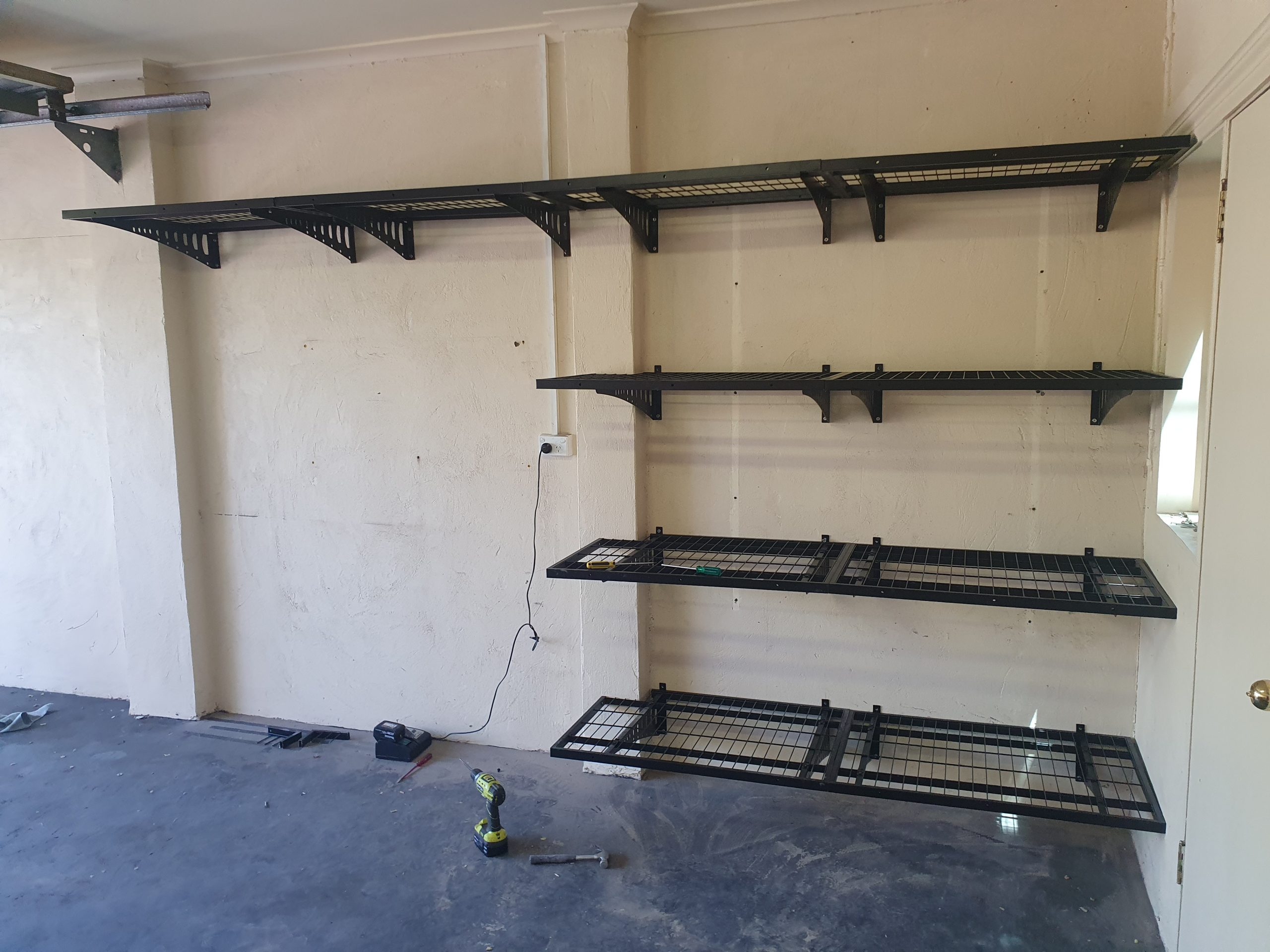

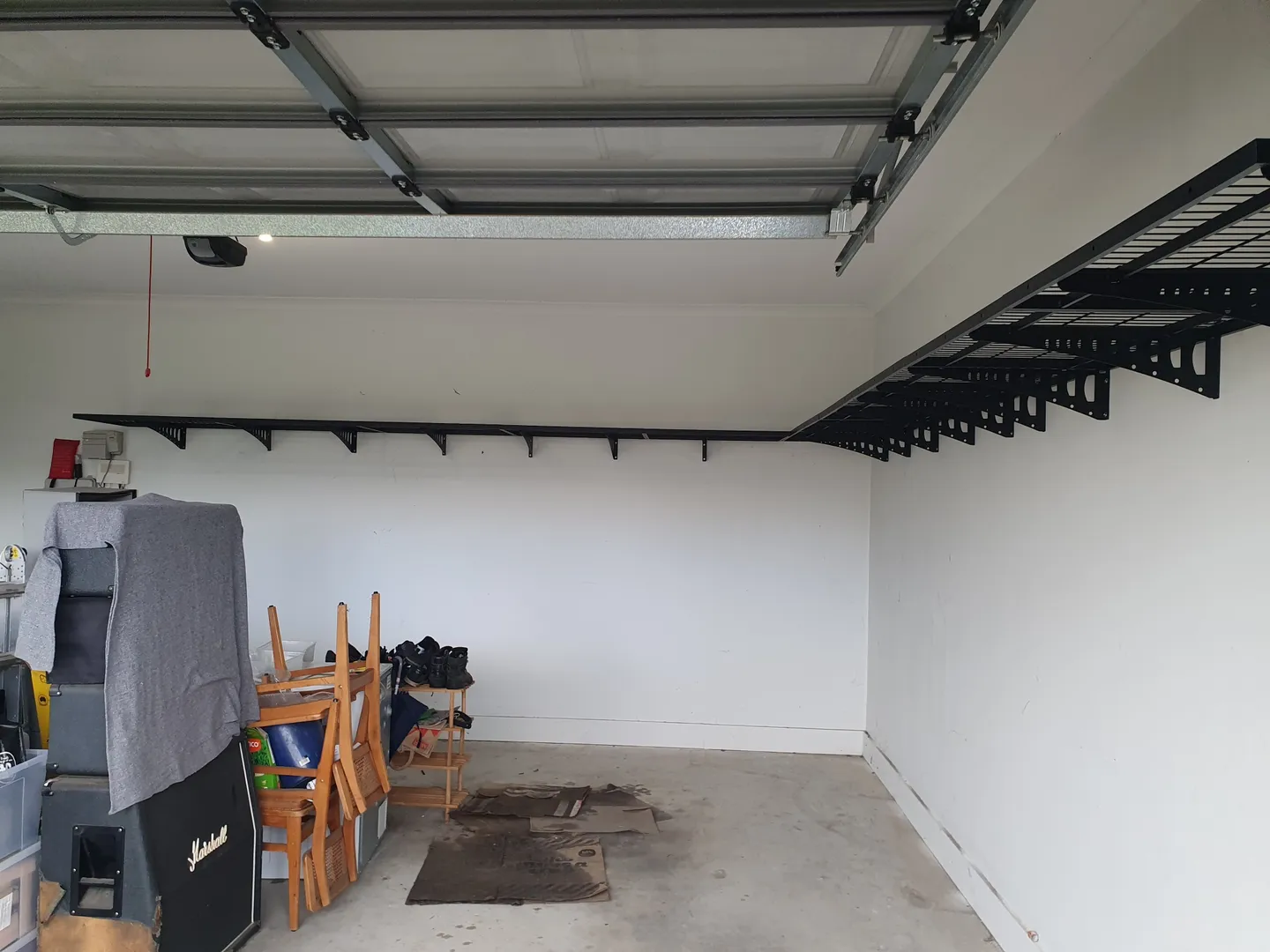

Our new kit includes two 900mm length shelves that can be installed side by side, tiered, or seamlessly flowing around corners, offering unmatched flexibility to tailor your storage to your needs. With six included hooks, managing your storage has never been easier or more efficient.

Experience Unrivaled Convenience and Stability!

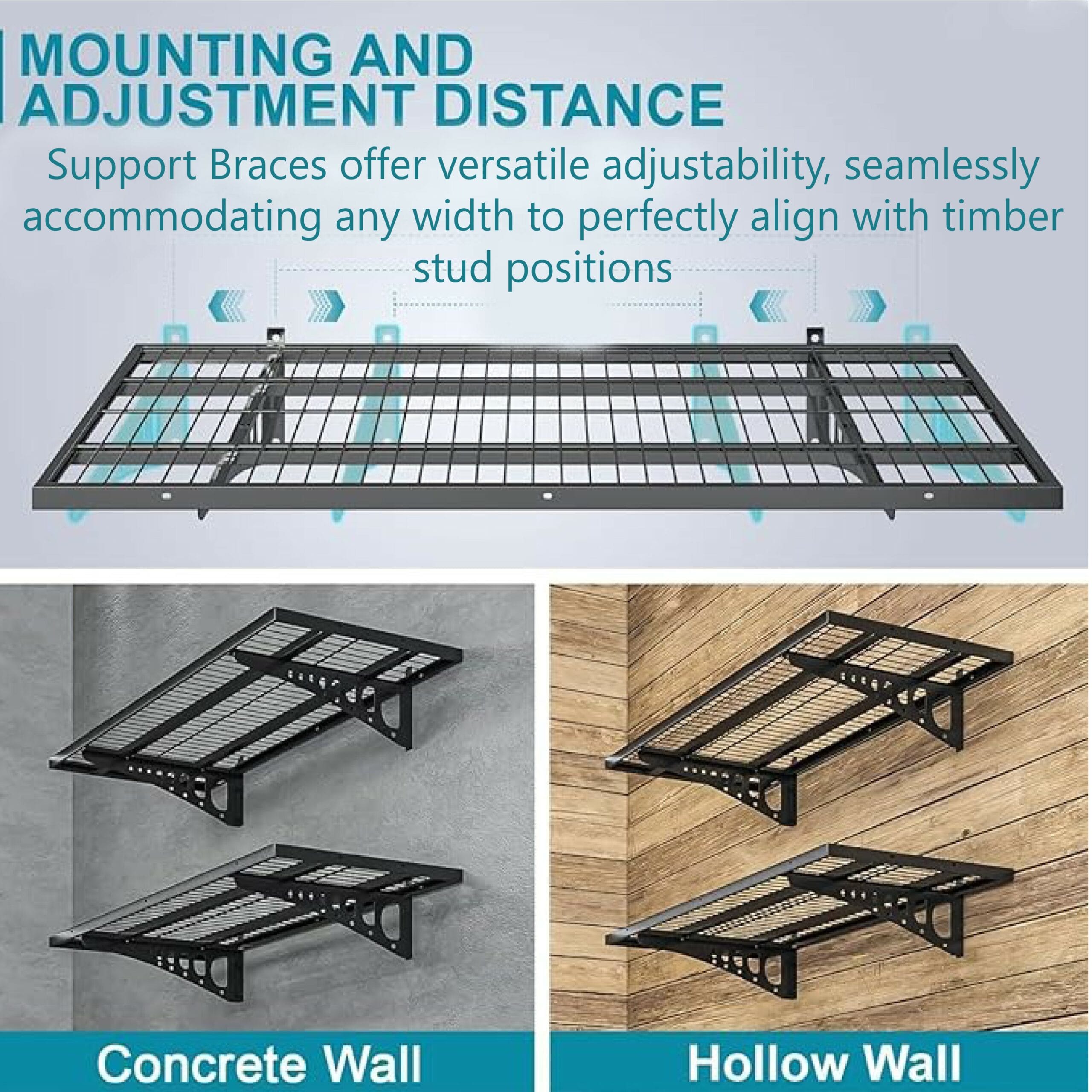

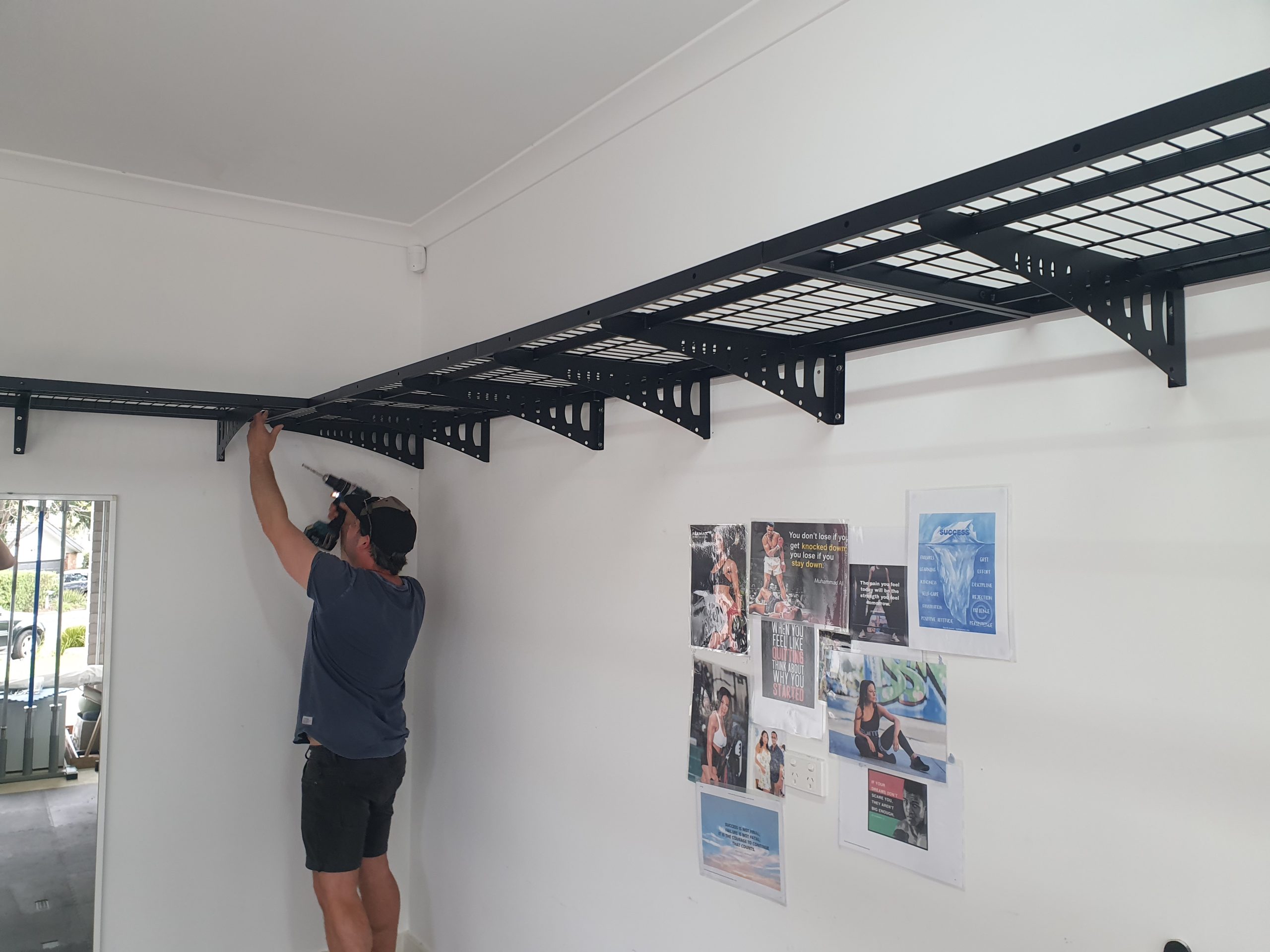

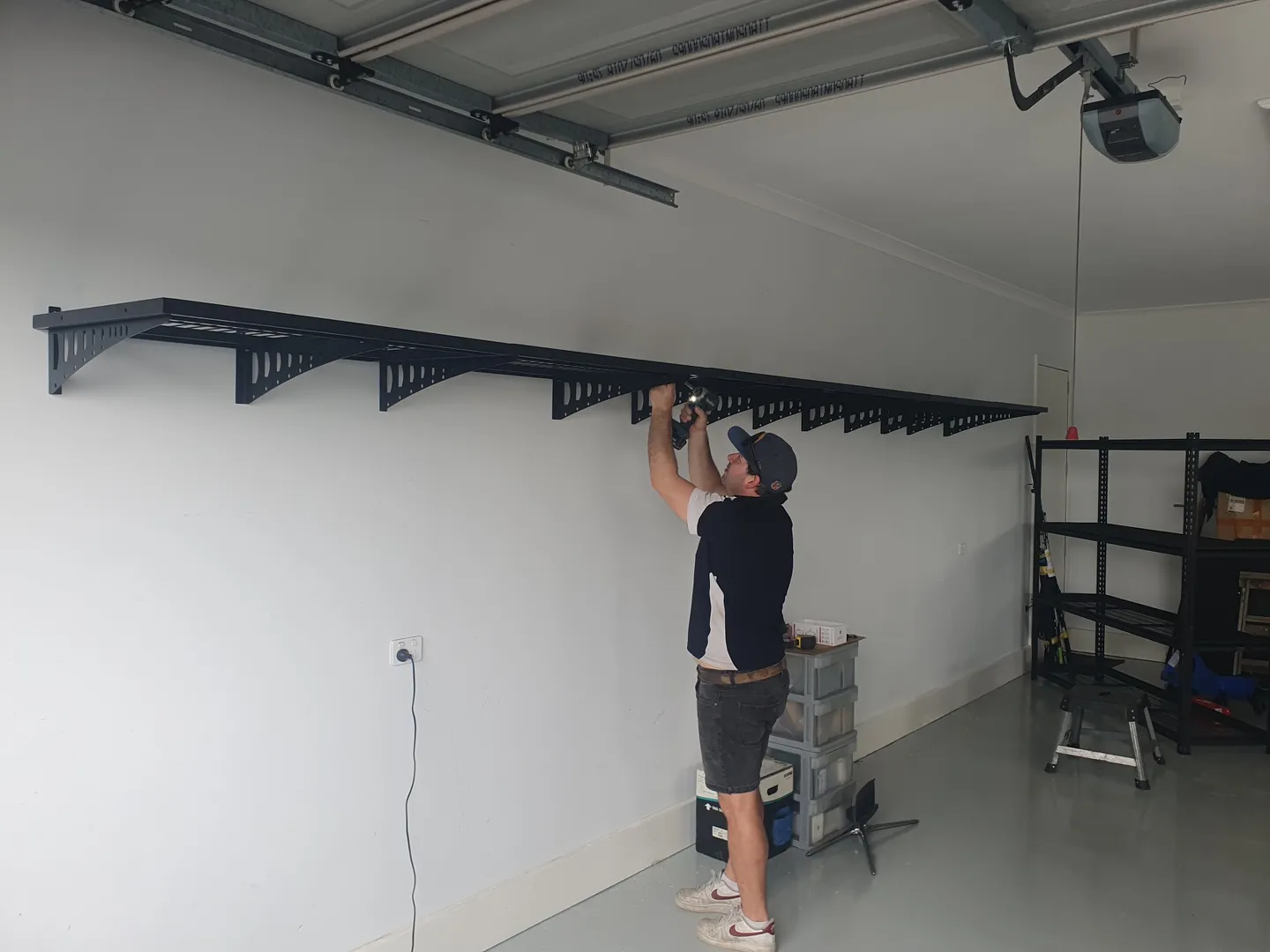

Installation is a breeze, achievable by just one person. Our shelves come with all necessary hardware and are suitable for secure installation on wall studs, brick, or concrete walls.  But what sets us apart? Our innovative adjustable shelf bracing, allows you to position them precisely where you need them. No more limitations due to stud spacing—our shelves adapt to your garage’s unique layout. Scroll down or click to view Installation Video.

Professional Installation service: available in Melbourne. Contact us for a competitive quote and check our reviews to see how satisfied our customers are.

Upgrade to Unmatched Strength and Reliability!

Manufactured with 2.8cm steel support on all sides, our shelves redefine durability. They’re not just shelves; they’re a testament to stability, ensuring your belongings are safely stored for years to come.

Don’t Settle for Less – Elevate Your Garage Storage Today!

Bid farewell to clutter and chaos. Upgrade to our Extra Large Garage Wall Mounted Heavy Duty Wall Shelf and transform your garage into a haven of organization and efficiency. Say hello to a clutter-free future and rediscover the joy of a streamlined space!

Important Installation Notice – Safe Fixing to Wall Types

 Thank you for considering our Heavy-Duty Garage Wall Shelf System.

For safety and structural integrity, it is essential that your shelf system is installed correctly according to your wall type. Using unsuitable fixings can result in failure of the shelf system and potential injury or property damage.

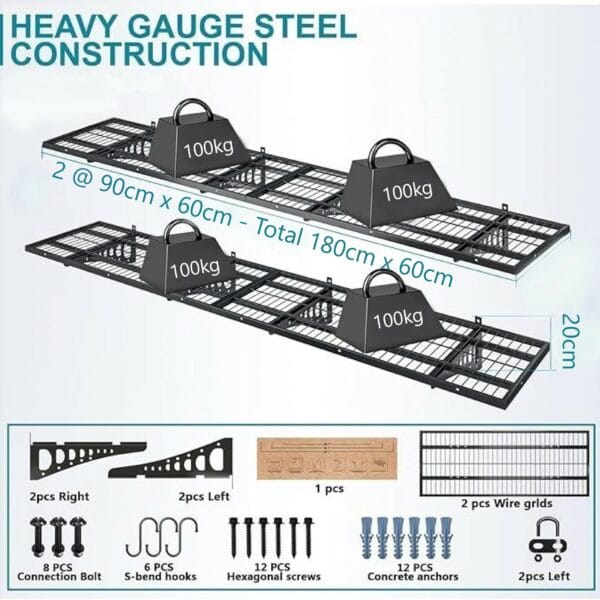

Supplied hardware in Kit

• 2 @ 900mm x 600mm shelves
• 4 @ Wall Brace with 3 holes
• 8mm Heavy-Duty Screws
• 12mm Nylon Expansion Plugs

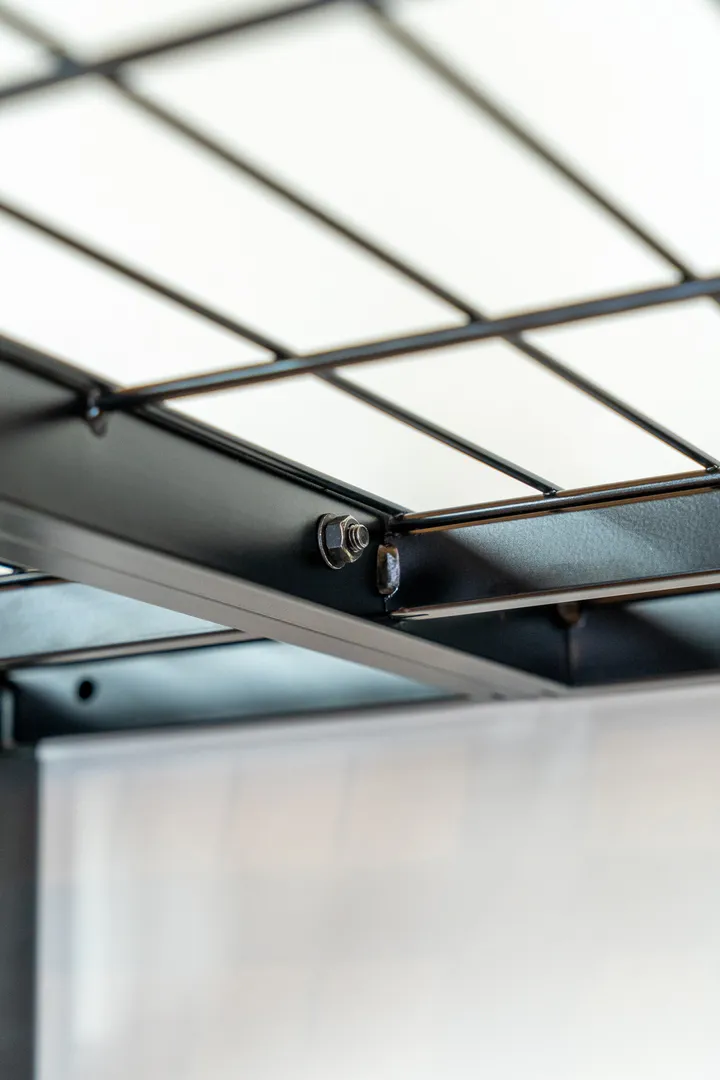

• Bolts to attach shelves

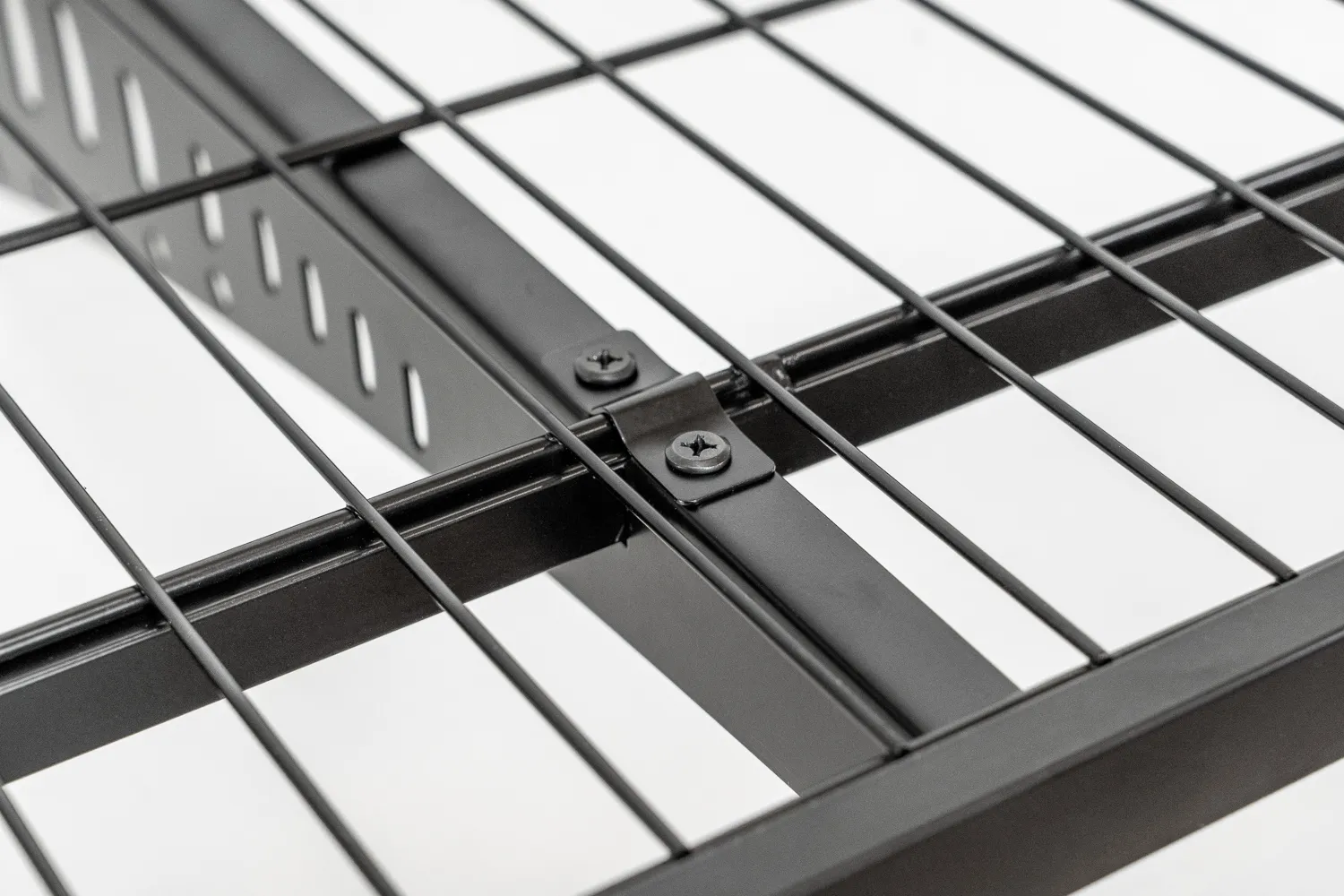

• Fastening clips & screws to attach shelves to braces
• 6 @ Stainless Steel utility hooks

Installation Guidelines by Wall Type: (Refer Installation Video)

✅ 1. Timber Stud Walls:

• Drill supplied 8mm timber screws directly into wall studs.
• Affix bottom 2 screws first, add top screw once shelves placed in braces.
• Load-bearing capacity is excellent when fixed securely into structural studs.

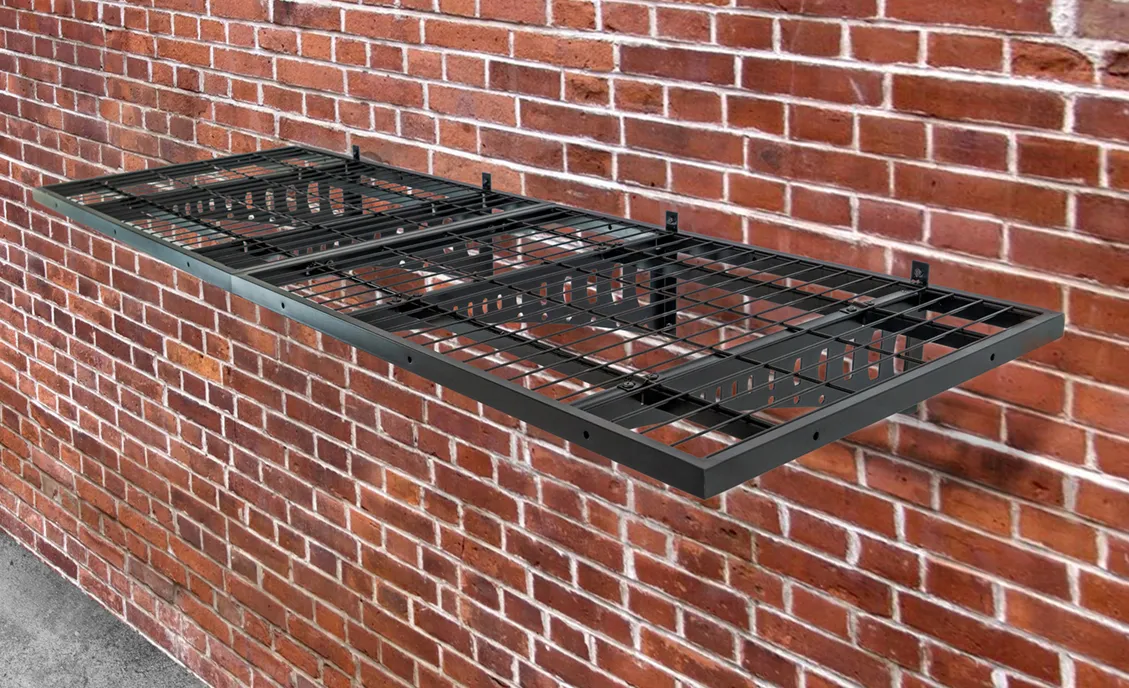

✅ 2. Solid Brick or Concrete Walls:

• Use the supplied 12mm nylon expansion plugs and 8mm screws.
• Drill 12mm diameter holes to correct depth (approx. 65–75mm).
• Insert plugs fully and tighten screws to expand securely inside solid material.
• Affix bottom 2 screws first, add top screw once shelves placed in braces.

⚠️ 3. Hollow Brick or Hollow Concrete Block Walls:

If your project involves installing your shelves to Hollow Brick Walls, check YES on the Upgrade Anchors for Hollow Brick Walls and we will include upgraded Anchors with superior hold and ability to hold larger loads.

• Drill 10mm diameter holes to correct depth (approx. 66–75mm).
• Insert plugs fully and tighten screws to expand securely inside cavity.
• Affix bottom 2 screws first, add top screw once shelves placed in braces.

These anchors provide proper load distribution across the cavity and minimize pull-out risks.

⚠️ 4. Metal Stud Walls (Steel Framing):

 Supplied fixings are not suitable for metal stud walls. We have successfully used the following products for Light/Medium load bearing installations available at an economical price and providing easy installation. Full instructions on pack.

For metal stud installations, we recommend:

• Ramset Hollow Wall Anchors (Metal) suitable for wall thickness 6–16mm
• Use the Ramset Hollow Wall Anchor Setting Tool to correctly flare the anchor behind the metal stud
• These can be purchased from Hardware Stores (Bunnings or Mitre 10) Online or Specialist Screw suppliers

⚠️ Note:
Anchoring to metal studs provides limited load-bearing capacity, likely similar to hollow wall installations. Shelves installed on metal studs should be treated as light/medium-duty installations only. Larger load bearing specialist Anchors are available from Specialist Screw Suppliers, generally more expensive, contact us for more information.

Load Ratings (Guide Only):

* Load ratings are approximate. Actual capacity depends on wall condition, installation method, and correct fixing use.

General Installation Advice:

• Always confirm wall type before installation.
• When in doubt, consult a qualified tradesperson.
• Spread load evenly across shelf surface.
• Avoid concentrated loads near shelf edges.

Need Assistance?

Contact our support team for guidance:
henry@esmartstoragesolutions.com.au

0413 596558

Stay safe, install smart, and enjoy your premium garage storage system!
